Leukemia ward UKSH in Kiel

Further development of the oncological-hematological focus at the UKSH

Facts and figures

Client:
Gebäudemanagement Schleswig-Holstein AöR, Kiel
Object:
2-storey building in modular construction to accommodate 40 patients (NF approx. 1,080 m²)
Design:
Schmieder.Dau.Architects. BDA, Kiel
Services:
Structural design
Special features:
  • Modular construction with flat roof
  • Right-angled connection to the existing emergency room
  • Partial basement made of reinforced concrete for technical rooms in the connection area

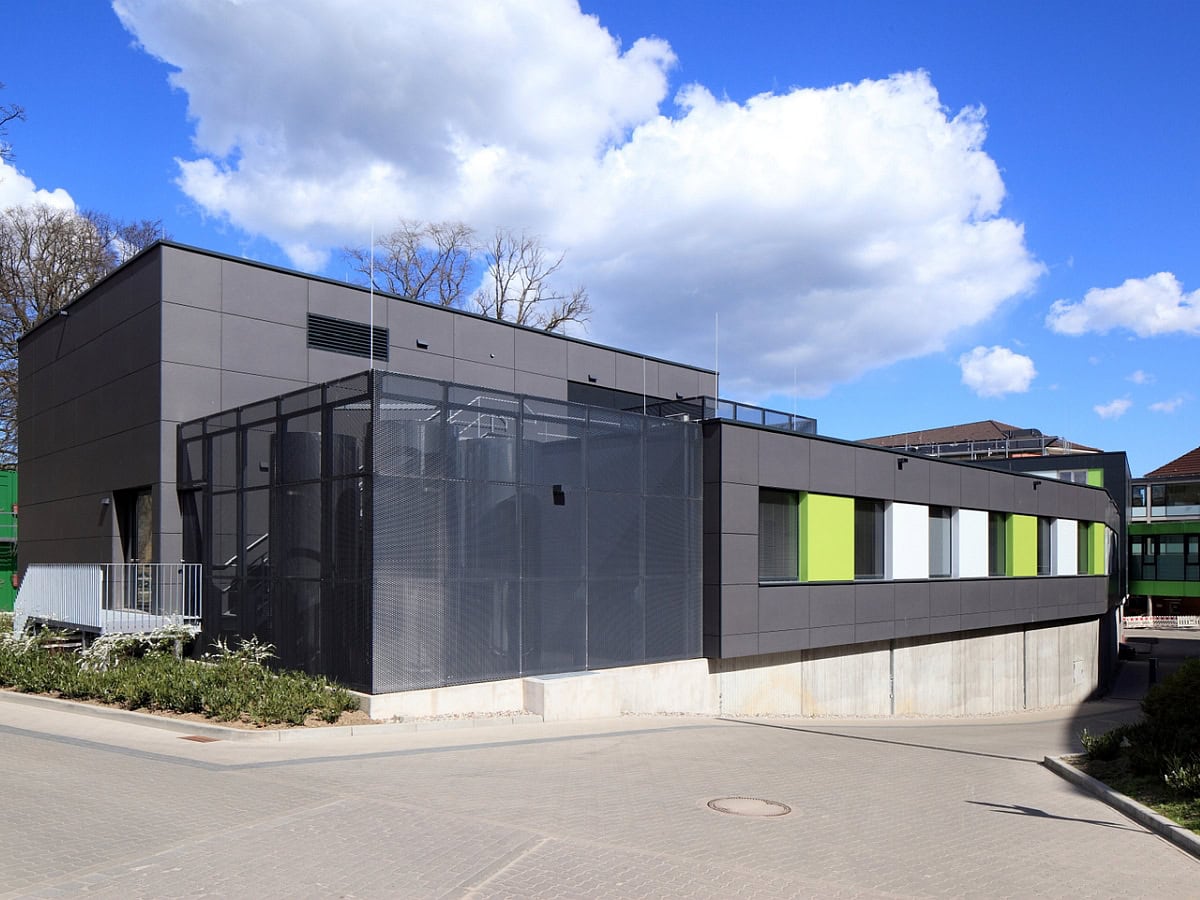

  • Recessed technical floor in the middle above the patient rooms with external steel staircase
  • Support of the height offset of max. 5.00 m by an angled retaining wall
  • Shallow foundation using strip foundations with 17 modules (18.80 x 4.20 x 3.70 m with a weight of up to 30 tons)
  • Total construction time of just one year thanks to the high degree of prefabrication of the modules of approx. 90 % in the factory
