Mooring bridge Mönkeberg in Kiel

The direct route to the ferry

Facts and figures

Client:
Municipality of Mönkeberg
Object:

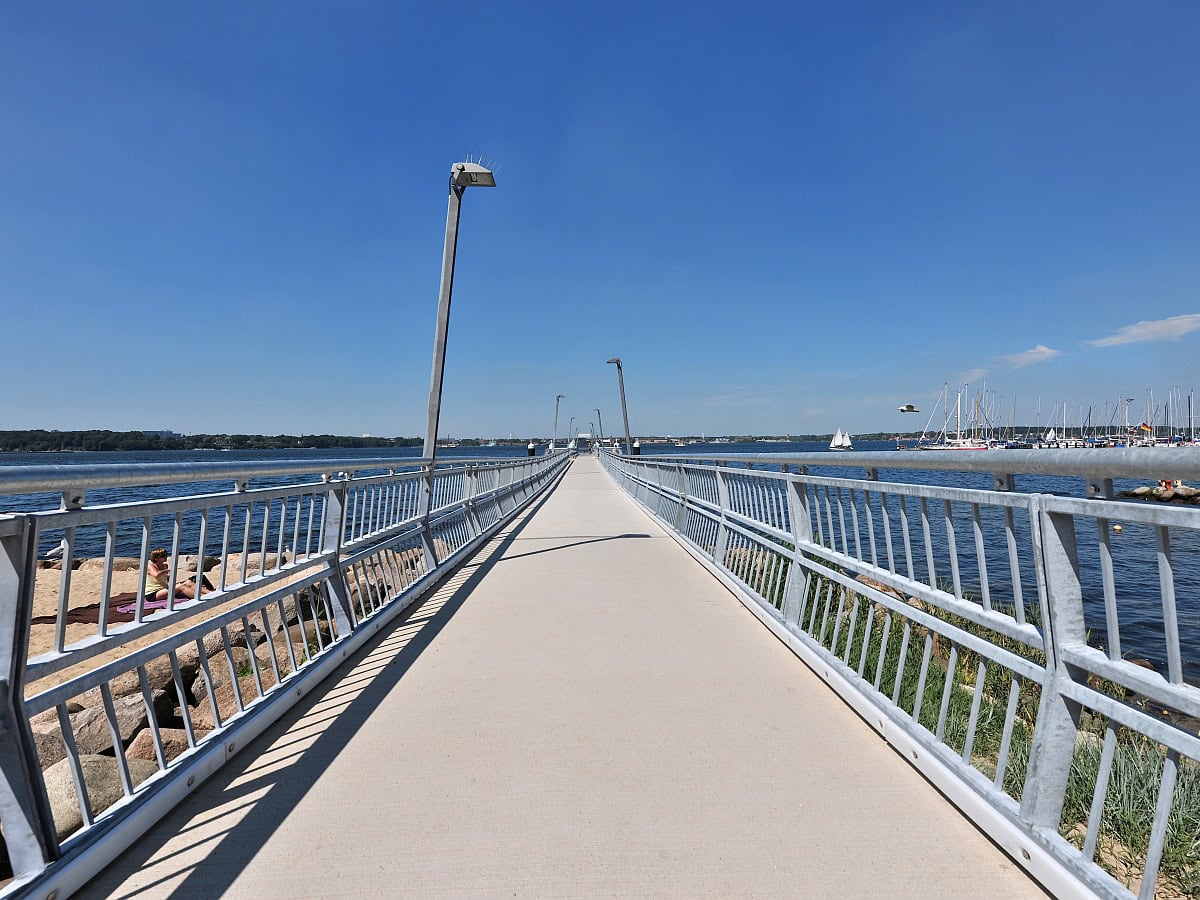

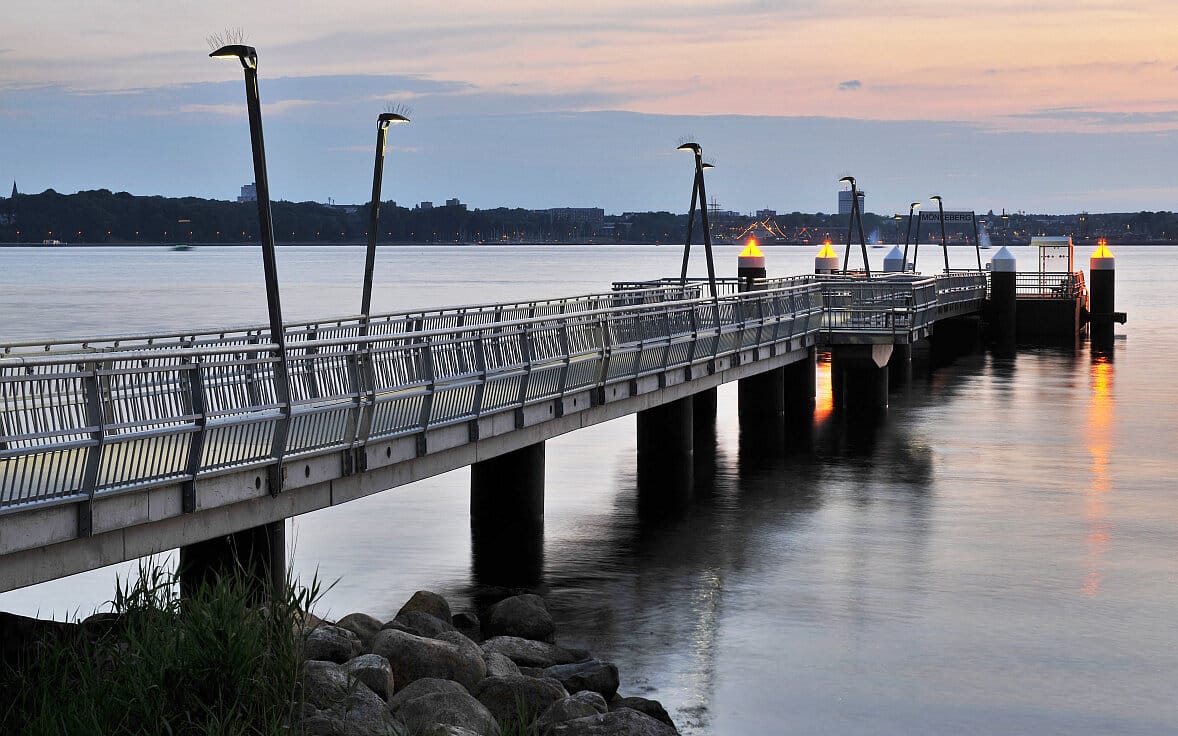

Reinforced concrete access bridge with docking pontoon as steel structure
Design:
Municipality of Mönkeberg
Services:
Structural design
Precast reinforced concrete planning, structural planning
Special features:
  • Type of structure: Reinforced concrete access bridge with landing pontoon as a steel structure

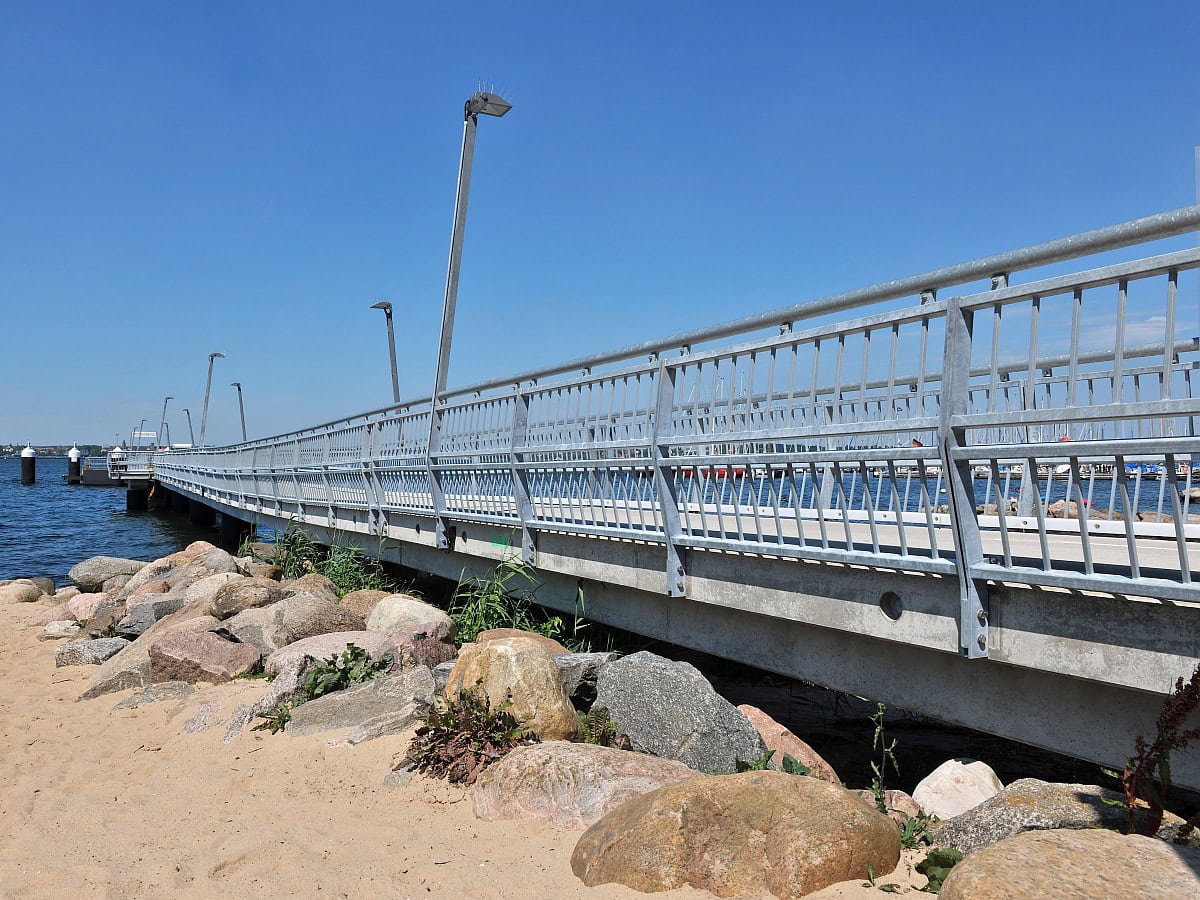

  • Type of structure: Access bridge: 1-span precast reinforced concrete elements with 2-web slab girder cross-section

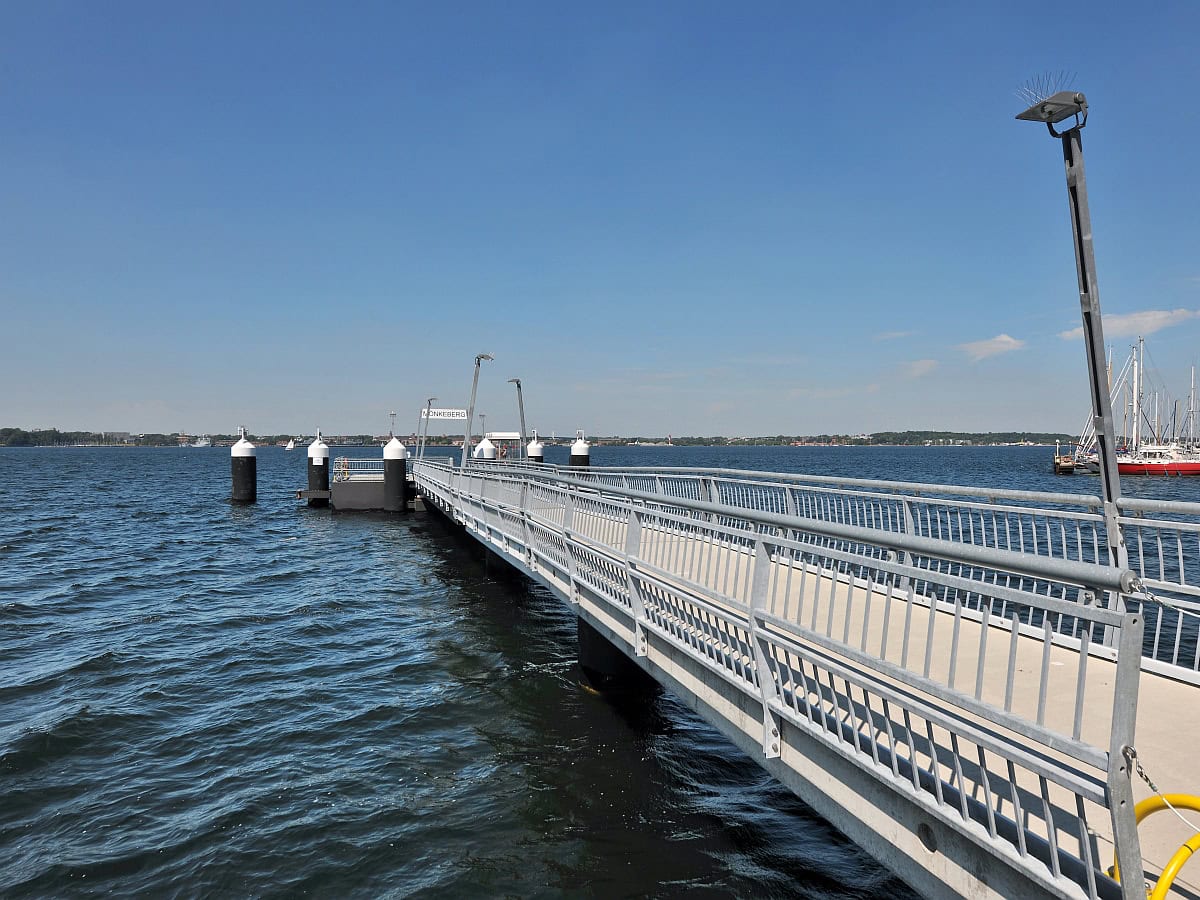

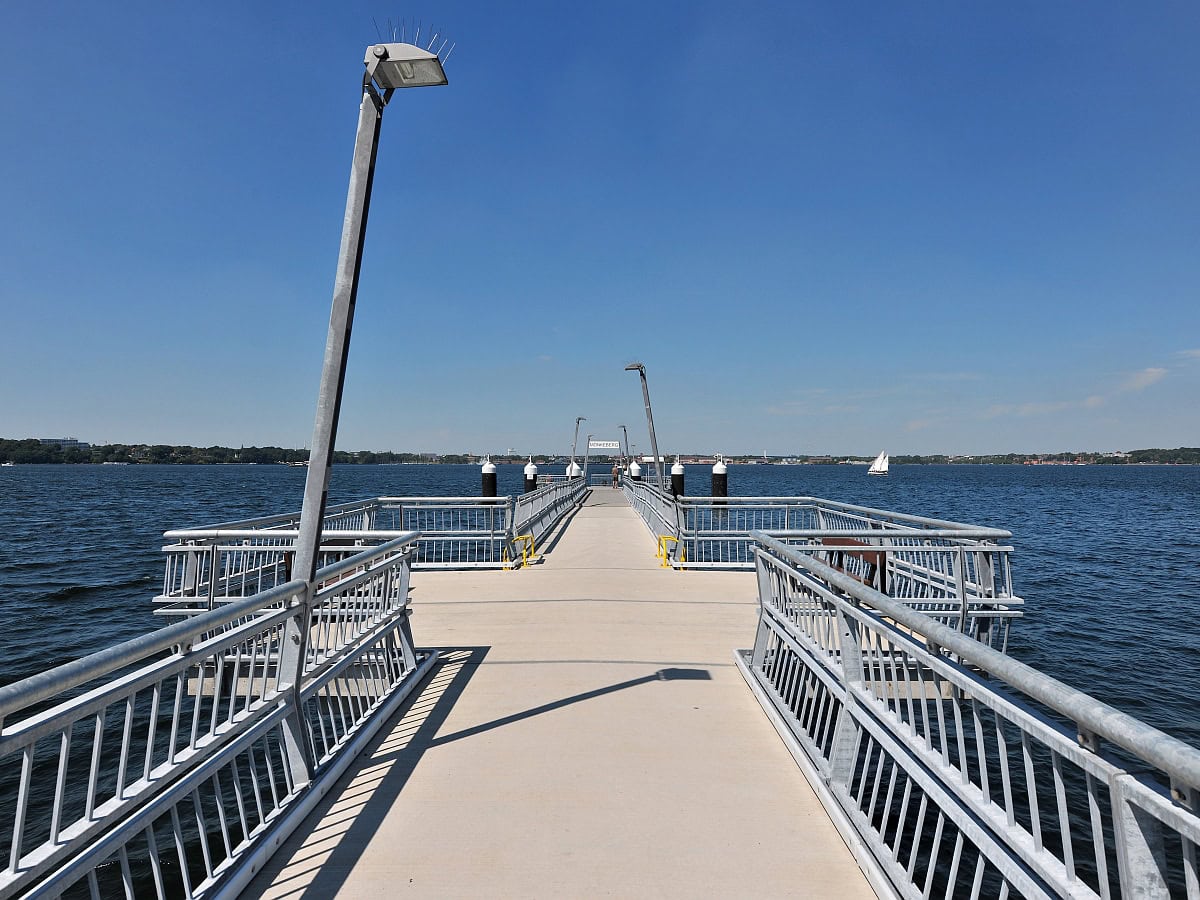

  • Pontoon: Hollow box construction made of steel
  • Span: access bridge 94.00 m, pontoon 10.20 m
  • Width: access bridge 2.50 m, pontoon 10.00 m
  • Foundation: Deep foundation on tubular steel piles
